Prompt

if I wanted to build an agent that streamed sound that is being said by one of 2 speakers (people) that is about building software - and we want the streamed text to near real time have the AI whiteboard the ideas on a whiteboard and later build that or augment an existing system with what has been drawn on the whiteboard - what are the steps you recommend to build such a system? what existing whiteboarding software would be best for the AI to easily draw the ideas, augment them as descussed by the speakers and build a system based on a block diagram architecture?

build a plan and suggest some tools for the main components like voice streaming, voice to system design, whiteboarding, whiteboard to code

AI response

I’ll help you create a comprehensive plan for building this real-time AI-powered software development assistant. This is a fascinating multi-modal system that combines voice streaming, AI interpretation, and visual diagramming.

Let me start by researching the existing landscape and technical approaches for each component.

Based on this research, I can see this is a sophisticated system with multiple technical challenges. Before I create the detailed plan, I need to clarify some key requirements that will significantly impact the architecture and tool choices.

Asked 4 questions (Deployment, Users, Budget, Integration)

How do you plan to deploy this system? Desktop/local application

  • Runs on user’s machine What’s the expected usage pattern? 2 speakers only (as stated)
  • Always exactly 2 people What’s your preference for AI service costs? Cloud APIs (OpenAI, Google)
  • Pay-per-use, higher accuracy Do you need integration with existing tools? IDE/editor integration
  • VS Code, IntelliJ plugins

Perfect! Based on your preferences for a desktop application with 2 speakers, cloud AI services, and IDE integration, I can now create a focused plan. This simplifies the architecture significantly while maintaining the core real-time capabilities.

Plan: Real-Time AI Software Whiteboard Assistant

TL;DR: Build a desktop application that captures audio from 2 speakers, converts speech to text via cloud APIs, uses AI to interpret software development discussions, renders ideas on a real-time collaborative whiteboard, and generates code scaffolding. The system integrates with IDEs and focuses on pair programming/design sessions.

Steps

  1. Audio Capture & Streaming Pipeline
    • Implement WebRTC-based audio capture for 2 microphones using browser APIs or Electron
    • Create audio buffer management system (1-3 second chunks for optimal STT processing)
    • Add speaker identification using simple audio input selection (left/right channels or separate devices)
    • Build WebSocket connection for real-time audio streaming to processing backend
  2. Speech-to-Text Integration
    • Integrate OpenAI Whisper API for high-accuracy transcription with software development vocabulary
    • Implement chunked audio processing pipeline (streaming 2-3 second segments for ~3s latency)
    • Add Google Speech-to-Text as fallback with custom vocabulary for technical terms
    • Create transcript buffer with speaker attribution and conversation context management
  3. AI Interpretation Engine
    • Build GPT-4 integration with specialized prompts for extracting software architecture concepts
    • Create structured output parser for entities (services, databases, APIs, frameworks) and relationships
    • Implement real-time conversation context tracking with sliding window approach
    • Add entity resolution and relationship mapping for architectural components
  4. Real-Time Whiteboard Implementation
    • Integrate tldraw library for programmatic diagram generation and real-time collaboration
    • Create diagram templates for common software patterns (microservices, MVC, data flow, etc.)
    • Build shape and connector generation from AI-extracted entities and relationships
    • Implement real-time updates as conversation evolves with conflict resolution
  5. Diagram-to-Code Generation
    • Create architecture pattern recognition from whiteboard state using diagram analysis
    • Build code scaffolding generators for common frameworks (React, Express, Spring Boot, etc.)
    • Integrate with template engines (Handlebars) for generating project structures, configs, and boilerplate
    • Add export capabilities for Infrastructure-as-Code (Terraform, Docker Compose, Kubernetes YAML)
  6. IDE Integration Layer
    • Develop VS Code extension for launching whiteboard sessions and importing generated code
    • Create file watching and project structure integration for augmenting existing codebases
    • Build IntelliJ plugin with similar capabilities for Java/Kotlin projects
    • Add project context awareness to improve AI interpretation accuracy
  7. Desktop Application Framework
    • Build Electron application with React frontend for cross-platform deployment
    • Implement local data persistence with SQLite for session history and preferences
    • Create session recording/playback capabilities for review and iteration
    • Add keyboard shortcuts and window management for seamless workflow integration

Verification

Manual Testing:

  • Audio capture quality test with 2 speakers in typical dev environment
  • latency measurement: audio → transcript → diagram updates (target <10 seconds)
  • Accuracy validation: software architecture discussions → correct diagram generation

Integration Testing:

  • VS Code extension: whiteboard → code import → project compilation
  • Multiple conversation styles: architectural planning, debugging sessions, feature design

Performance Testing:

Extended conversation sessions (30+ minutes) for memory/performance validation Real-time responsiveness during rapid conversation changes

Decisions

Audio Processing: Chose OpenAI Whisper API over local deployment for simplicity and accuracy, with Google STT fallback

Whiteboard Engine: Selected tldraw over Excalidraw for better programmatic control and React integration

AI Services: GPT-4 for interpretation over local models due to superior software development context understanding

Desktop Framework: Electron for cross-platform IDE integration capabilities vs native applications

Real-time Architecture: WebSocket-based event streaming vs polling for responsive diagram updates

The system prioritizes accuracy and ease of development over maximum performance, making it ideal for focused pair programming and design sessions while leaving room for future optimization.

State of Voice to Diagram

Peter Steinberger of https://openclaw.ai/ clearly likes the ide3a of talking to his code editor as mentioned at time stamp in the interview with Lex below

OpenClaw: The Viral AI Agent that Broke the Internet - Peter Steinberger | Lex Fridman Podcast #491

OpenClaw: The Viral AI Agent that Broke the Internet - Peter Steinberger | Lex Fridman Podcast #491

seems ExcaliDraw had a text to diagram feature 1 year ago. It sounds like it used Mermaid as an intermediary step to diagram.

This AI Tool Turns Text Prompts to Diagrams - Aurelius Tjin This AI Tool Turns Text Prompts to Diagrams - Aurelius Tjin

There are others in the space like https://www.visily.ai/diagram-ai/ but driven by text prompts

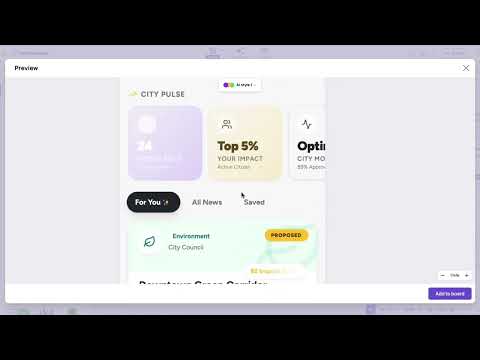

Visily’s Design Instructions & Deep Design Mode walkthrough - Visily Visily's Design Instructions & Deep Design Mode walkthrough - Visily

And something that sounds like voice-to-diagram that may be worth looking at https://www.synergycodes.com/voice-to-diagram

  • natural speech input
  • Real-time AI processing
  • interactive diagram

Voice to diagram: Turn speech into visual diagrams with AIEnhance your diagramming app with voice to diagram AI. Add accessibility-first features that convert natural speech into professional diagrams.

and building STT (Speech-to-text) using amazon https://aws.amazon.com/blogs/machine-learning/building-real-time-voice-assistants-with-amazon-nova-sonic-compared-to-cascading-architectures/

Amazon Web Services Building real-time voice assistants with Amazon Nova Sonic compared to cascading architectures | Amazon Web ServicesAmazon Nova Sonic delivers real-time, human-like voice conversations through the bidirectional streaming interface. In this post, you learn how Amazon Nova Sonic can solve some of the challenges faced by cascaded approaches, simplify building voice AI agents, and provide natural conversational capabilities. We also provide guidance on when to choose each approach to help you make informed decisions for your voice AI projects.

Conversational AI Design - maybe thats the “name” we need to be inspired by https://www.designsystemscollective.com/conversational-ai-design-creating-natural-voice-user-interfaces-f45f57ea5b92MediumConversational

AI Design: Creating Natural Voice User InterfacesExplore how to craft intuitive, human-like voice interactions that connect users and technology through natural language. Learn the…

this is a set of papers on the topic? https://www.emergentmind.com/topics/ai-assisted-diagramming-applicationsemergentmind.com

AI-Assisted Diagramming Apps AI-assisted diagramming apps leverage LLMs, VLMs, and DSLs to automate diagram creation, enhance semantic accuracy, and foster human-AI collaboration.
