The Package Arrives

There are road tests, and then there are road tests. When element14’s April 1st offering landed in my inbox — the element13 Foil Headwave Aluminium aTtenuator DevKit — I was, naturally, all in. Element 13 on the periodic table is aluminium. I should have known.

The kids’ faces said it all. There is a special kind of disappointment when you have built up “electronics delivery” energy and the box contains thirty pre-cut sheets of kitchen foil. Was the foil packaging something? No. The foil was the thing.

Still — a devkit is a devkit. I decided to take the brief seriously, pulled out some lab equipment and a Jupyter notebook, and went to work.

What Did We Actually Receive?

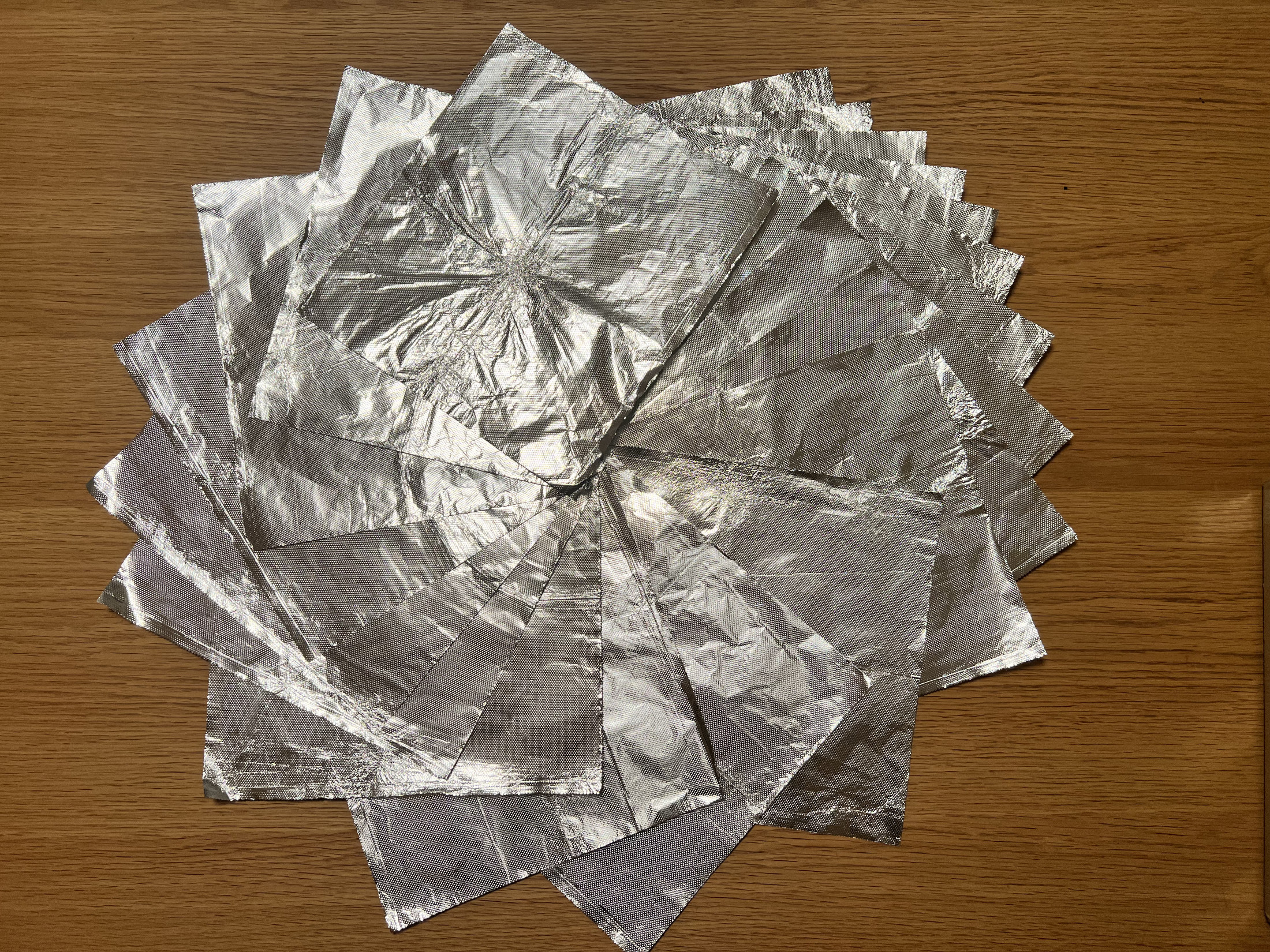

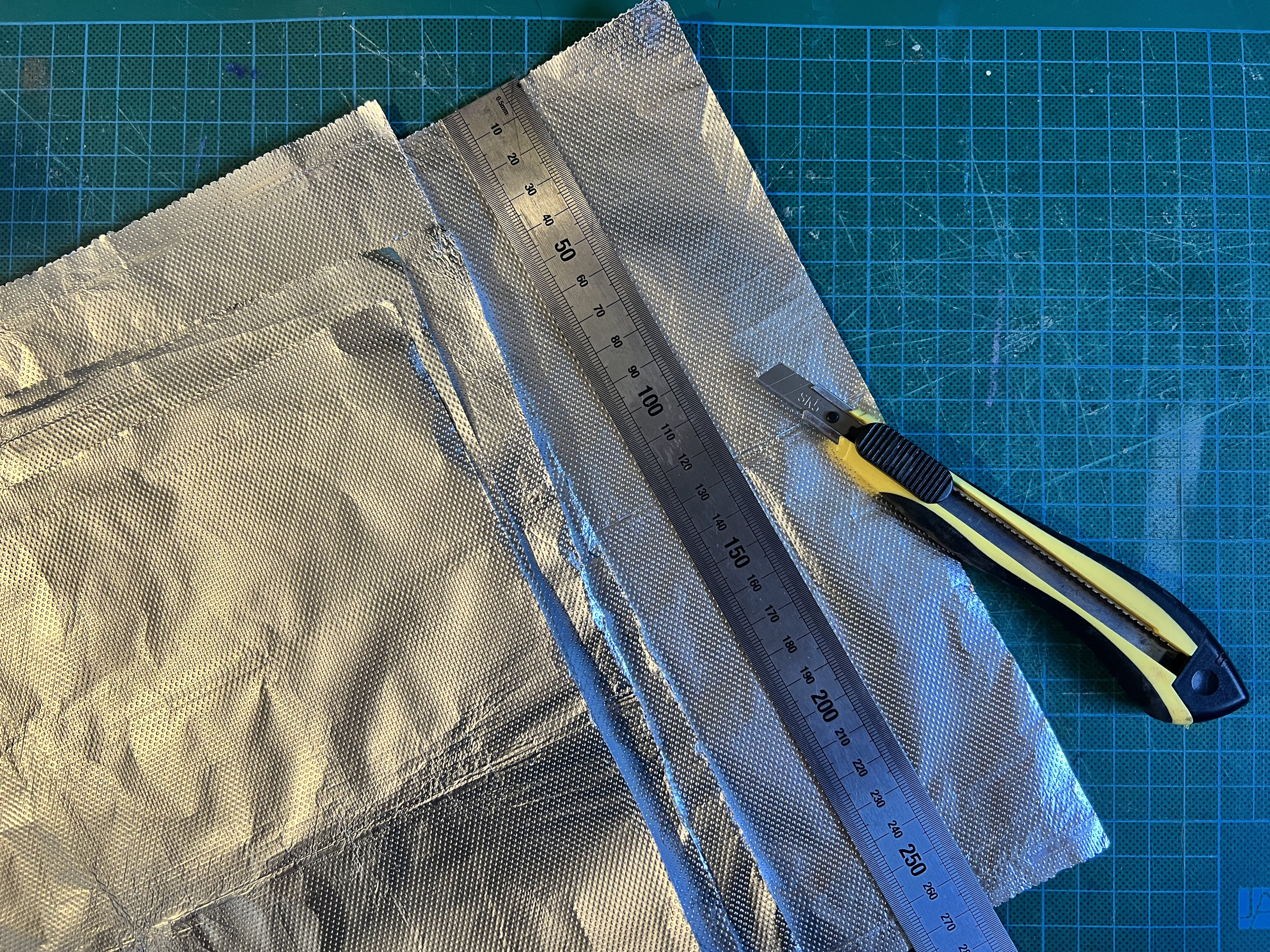

Thirty sheets of aluminium foil, pre-cut to a consistent size. First observation: the cutting is genuinely precise. All five sheets I measured came in at 299×273 mm ±0.25 mm — better tolerance than most craft cutters manage. Whatever tooling produced these, it is not scissors. I think this had a level of novelty for me, as I am used to rolls of aluminium foil and having to cut them myself.

Oh and there were stickers - I was so excited about the foil, I forgot to put the stickers in the shot

Material Characterisation

Thickness: A Tale of Three Methods

The nominal spec for Aluminium foil is a thickness of 16 µm. I tried three approaches to verify this.

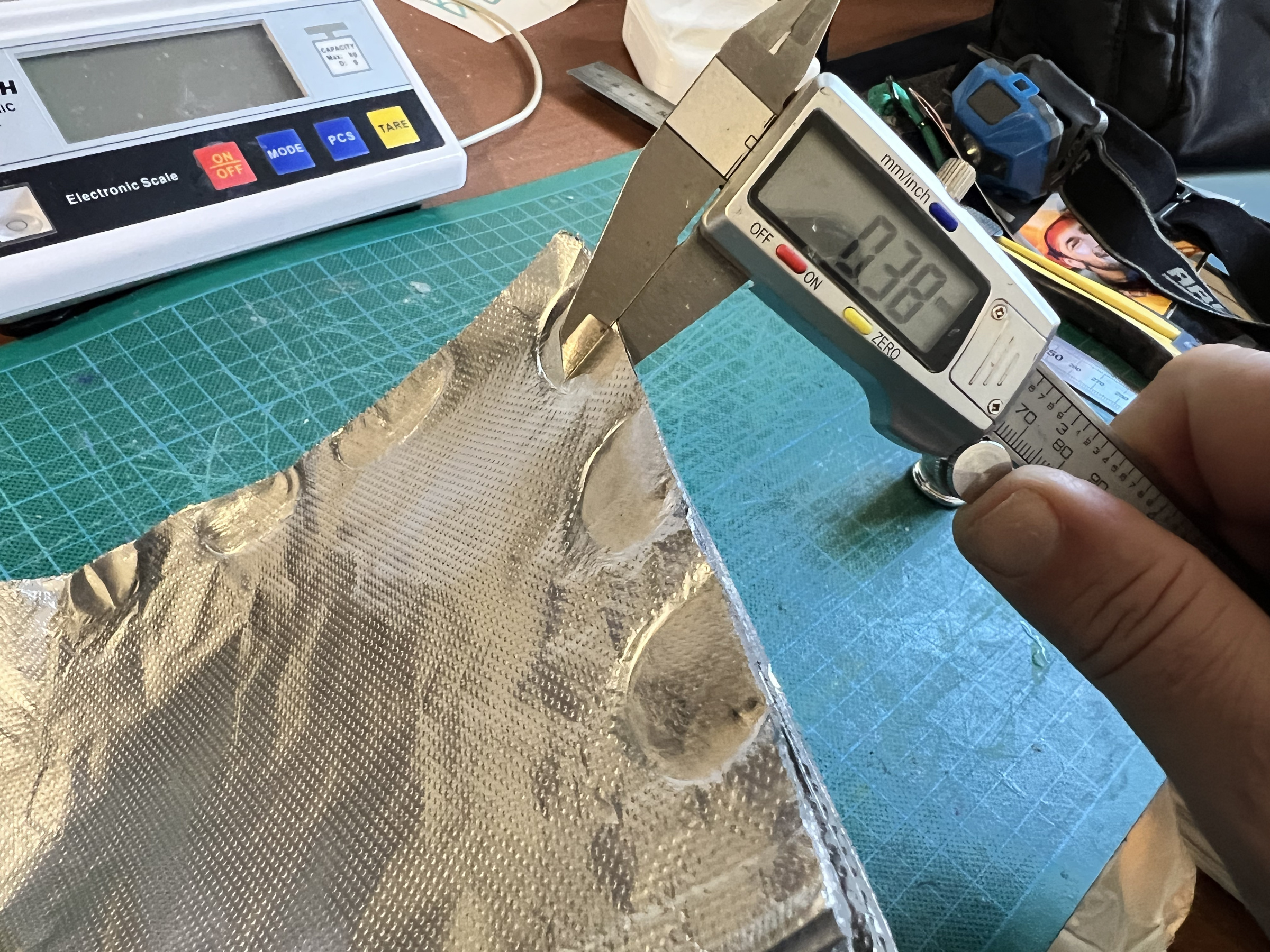

Released caliper jaw (20-layer stack, 6 sections): 15.0–19.5 µm per sheet, mean 17.6 µm. Too high — air gaps between the stacked layers inflate the reading.

Firm caliper press (same stack): 10.5–13.5 µm per sheet, mean 12.1 µm. Too low — cheap digital calipers might flex under some jaw force, pulling the reading down.

The two failure modes bracket the truth from opposite sides, which is itself a useful result.

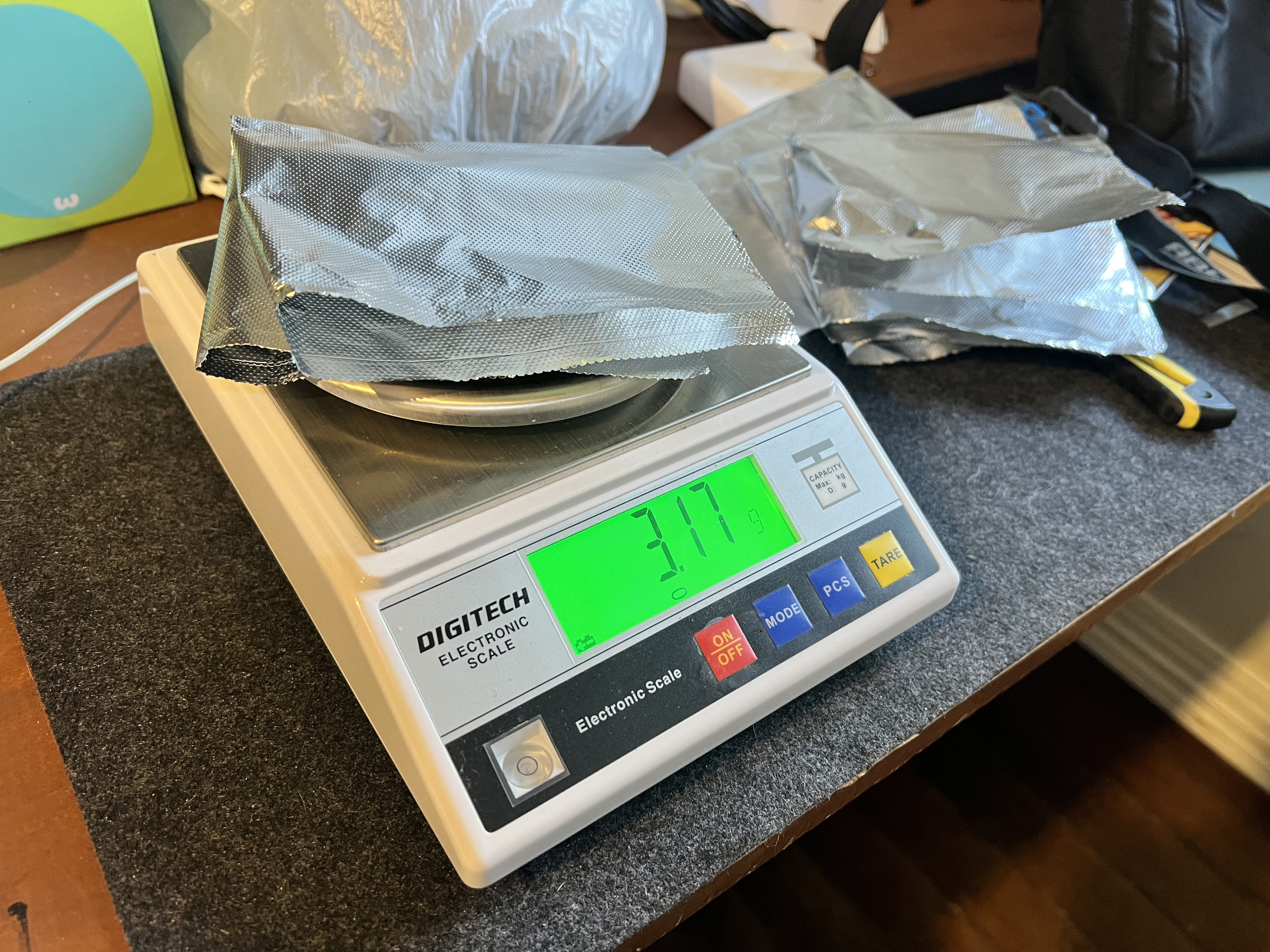

Mass method — five sheets, two weighings each, three bundle weighings:

method mass/sheet thickness Δ from nominal
individual mean 3.160 g 14.34 µm −1.66 µm
bundle mean 3.157 g 14.32 µm −1.68 µm (−10.5%)

The foil is 14.32 µm — 10.5% thinner than the 16 µm nominal predicted.

The mass method has no air-gap or frame-flex problem. Uncertainty is dominated by the ruler measurement of sheet area (±0.25 mm on 299 mm ≈ 0.17%), giving thickness uncertainty of ±0.02 µm. The caliper method, by contrast, had ±4.5 µm spread from air gaps alone.

Lesson: for thin compressible stacks, weigh them — don’t measure them.

Tensile Strength

A 10 mm wide strip, tape-reinforced at each end, hung from a fixed point with a cup of water added incrementally until failure. Three trials:

trial failure load UTS
1 997 g 68.3 MPa
2 1,004 g 68.7 MPa
3 1,010 g 69.1 MPa
mean 1,004 g ± 6 g 68.8 ± 0.4 MPa

Only 12.6 g spread across three trials — 1.3% variation. The mean UTS (Ultimate Tensile Strenght) of 68.8 MPa is below the ~80 MPa often quoted for aluminium foil; that figure assumes work-hardened material. This product is clearly O-temper (fully annealed), standard for kitchen foil: softer, more foldable, 65–75 MPa typical. The ±0.4 MPa standard deviation confirms very uniform material throughout the roll.

HCl Dissolution

Hardware-store muriatic acid, diluted 1:3 in water. A half-sheet piece (1.58 g) dropped into a tared beaker. Mass tracked every 30 seconds as H₂ escapes.

Reaction: 2Al + 6HCl → 2AlCl₃ + 3H₂↑ Stoichiometry shortcut: Al dissolved (g) = H₂ lost (g) × 9

Phase 1 — cold outdoor conditions, undisturbed:

  • 74% of the foil dissolved in 9.4 minutes
  • Rate slowed because part of the foil was sitting above the liquid line

The interesting result came when I added more acid, impatient with the remaining 26%. The exothermic reaction had already warmed the solution slightly; fresh acid tipped it into thermal runaway. Rate jumped from ~0.01 g/min to >0.5 g/min over two minutes; the solution heated visibly and fumed. Of the 5.5 g total mass lost in Phase 3, only ~0.046 g was H₂ from the remaining aluminium — the other 5.5 g was HCl vapour and water evaporating from the hot solution.

This autocatalytic loop

cold start → slow reaction → exothermic heat → faster reaction → more heat

is a neat demonstration of why temperature control matters in wet chemistry, and why you do this outdoors with safety glasses. It also explains why two of my three attempts were too vigorous to measure cleanly.

TIP: For a clean kinetics curve: smaller piece (~0.4 g), larger volume (~150 mL), room temperature. Should complete in 3–5 minutes with no runaway.

RF Attenuation — 433 MHz

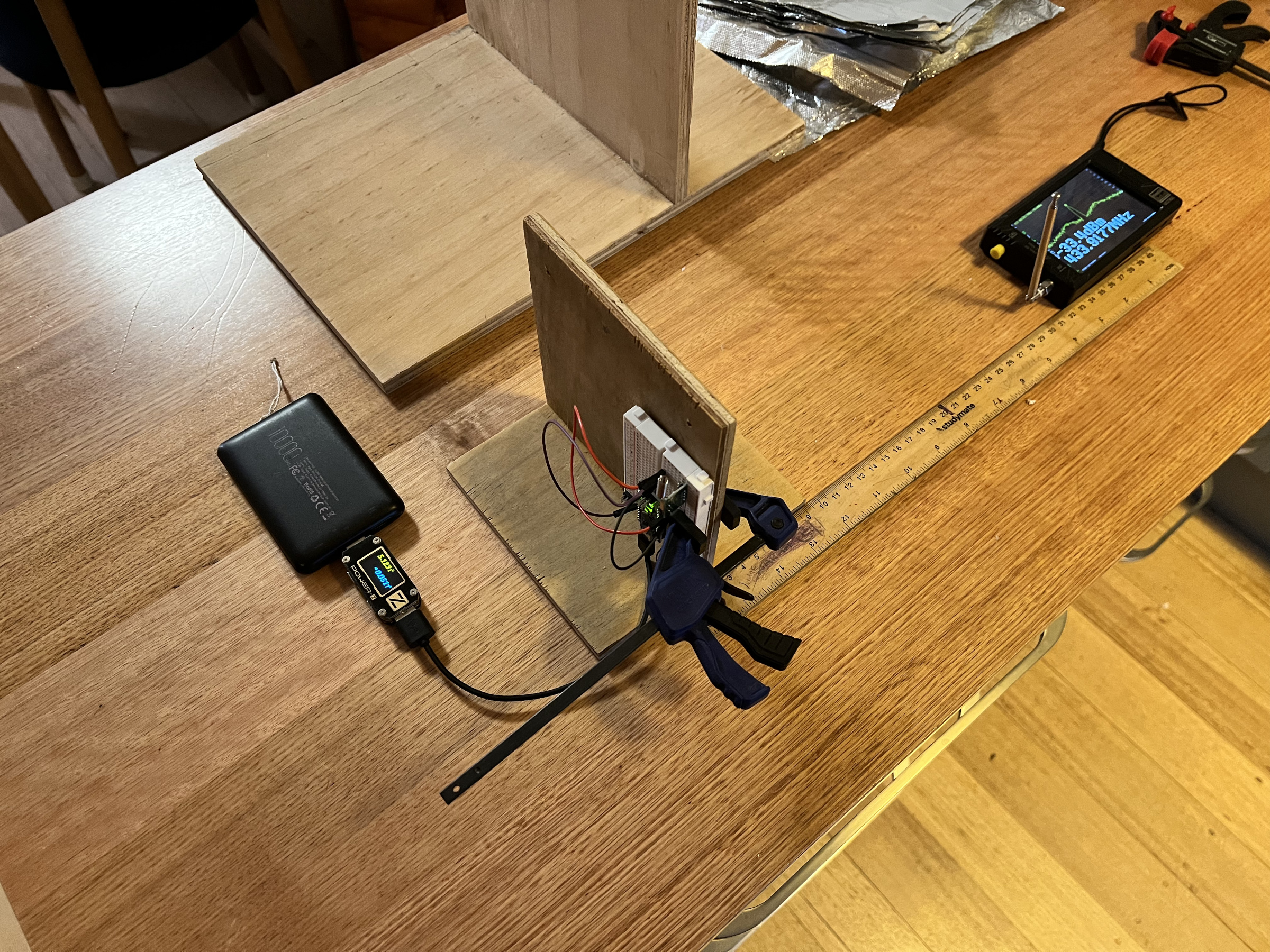

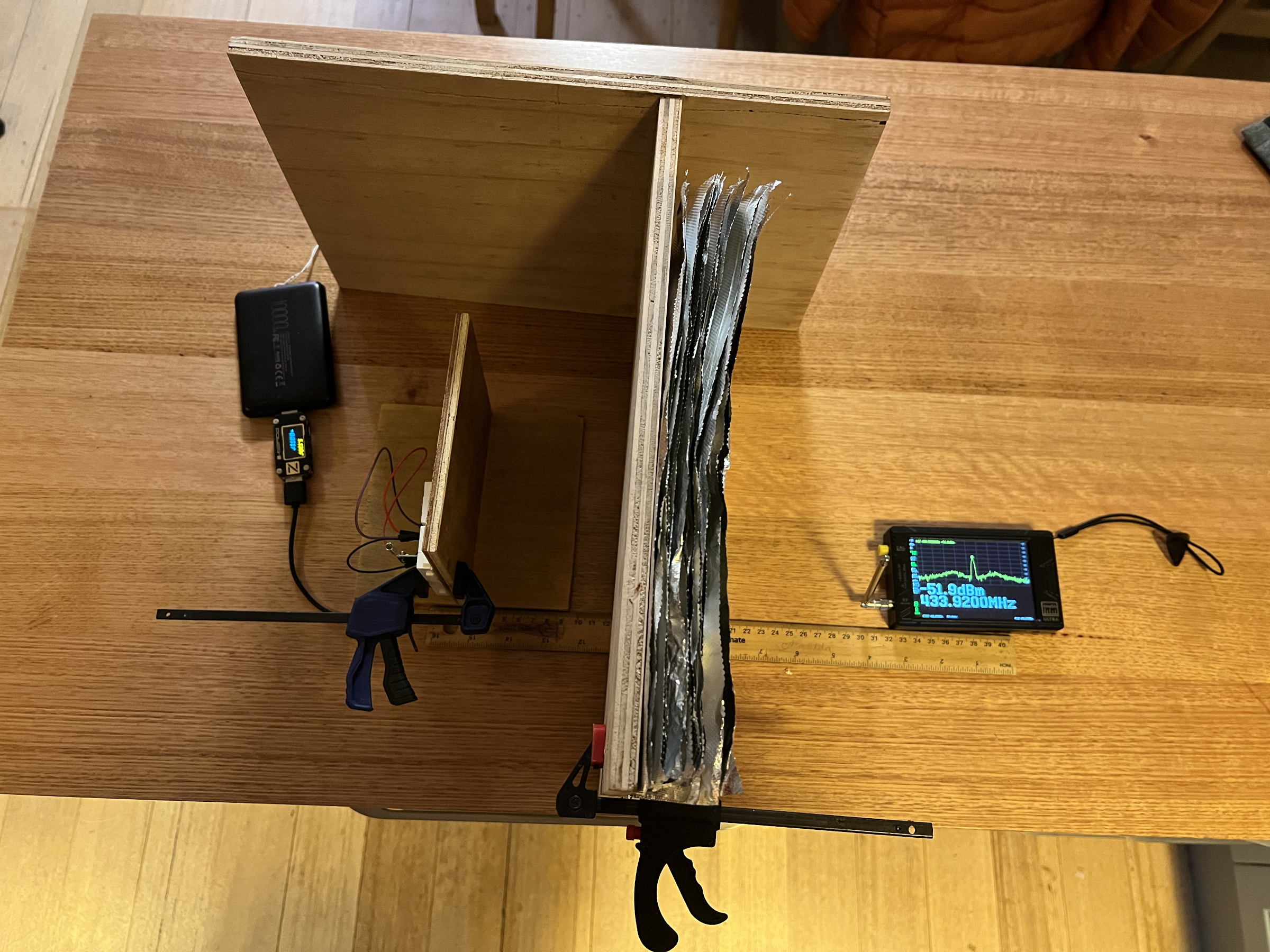

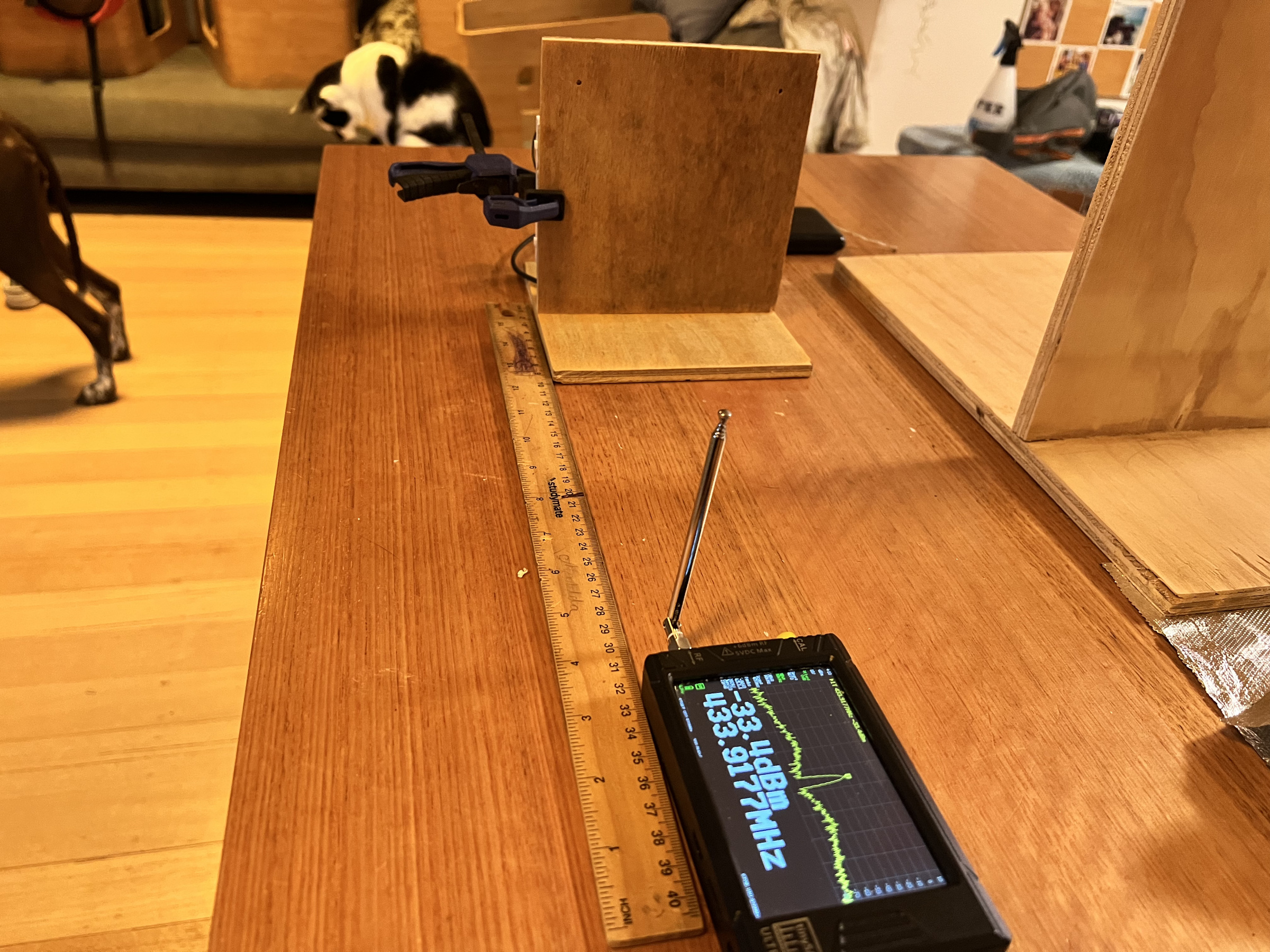

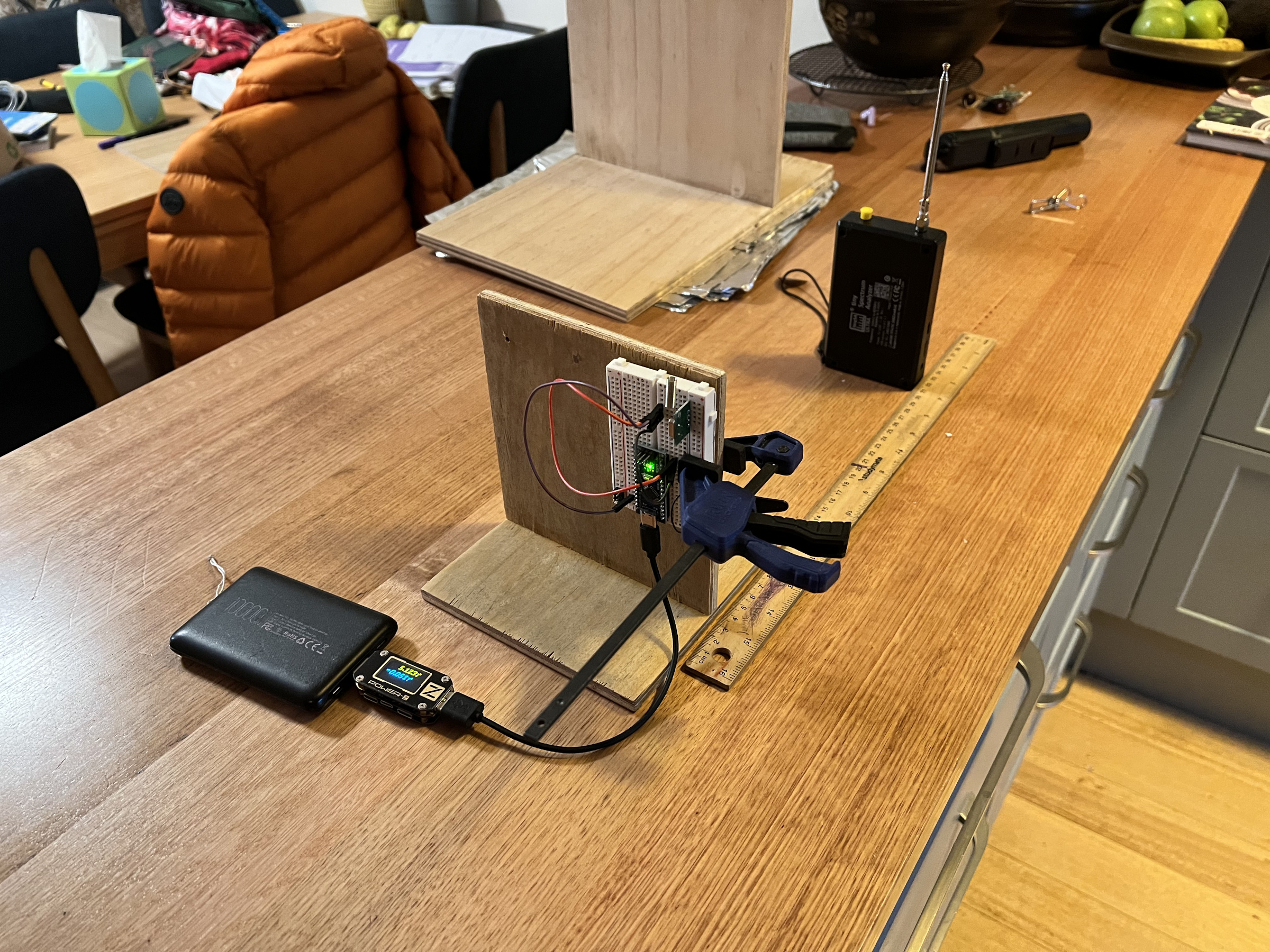

A continuous-carrier 433 MHz transmitter (FS1000A module, DATA pin held HIGH — a two-line Arduino sketch), the TinySA Ultra as receiver, fixed 30 cm apart with foil layers added one at a time.

void setup() {
    Serial.begin(115200);
    pinMode(TX_PIN, OUTPUT);
    digitalWrite(TX_PIN, HIGH);
    Serial.println(F("433 MHz TX | continuous carrier ON"));
    Serial.print(F("DATA pin ")); Serial.print(TX_PIN); Serial.println(F(" HIGH"));
}

The theoretical basis: skin depth of aluminium at 433 MHz is 3.94 µm. The foil is 14.32 µm thick — 3.6 skin depths — which the plane-wave skin-depth model predicts gives 31.6 dB attenuation per layer. A single sheet should be close to opaque.

Measured results — 24 layers, 30 cm indoor, TinySA Ultra:

layers dBm attenuation
0 −33.9 0 dB
1 −38.9 −5.0 dB
5 −40.4 −6.5 dB
10 −44.4 −10.5 dB
15 −52.4 −18.5 dB
20 −58.9 −25.0 dB
24 −63.9 −30.0 dB

The measured slope is approximately −1.25 dB/layer — about 25× less than the theoretical 31.6 dB/layer. The result is real and reproducible, but the discrepancy needs explaining.

Why so much less than theory? Three effects combine:

  1. Fresnel diffraction — at 433 MHz (λ = 69 cm), the first Fresnel zone at the midpoint of a 30 cm path has radius ~23 cm. The foil is 27 cm wide, so it covers only ~36% of that zone; signal diffracts around the exposed outer ring.

  2. Room multipath — signal reflects off walls, ceiling, floor, and nearby objects. These indirect paths arrive at the TinySA from angles the foil does not block. Only the direct path is attenuated.

  3. Near-field geometry — at 30 cm = λ/2 the coupling is partly near-field rather than a clean plane wave, making the simple skin-depth model a poor approximation.

Despite the reduced per-layer efficiency, the experiment still shows a clear and measurable 30 dB total attenuation over 24 layers. The foil works; the indoor setup just can’t isolate the direct path cleanly. Outdoors at 3–5 m with the Fresnel zone properly covered, each layer would approach the theoretical value.

Summary

What element14 sent me was, let’s be honest, a pack of kitchen foil. But not just kitchen foil:

  • Precisely cut to 299×273 mm, consistent to ±0.25 mm across 30 sheets
  • 14.32 µm actual thickness — 10.5% thinner than the 16 µm nominal, but remarkably uniform
  • O-temper aluminium — UTS 68.8 MPa, soft, annealed, consistent to 1.3% across trials
  • Dissolves in dilute HCl with an entertaining exothermic finale if you are not careful
  • 30 dB total attenuation at 433 MHz — measured over 24 layers indoors; theory predicts 31.6 dB for a single layer, but multipath and Fresnel diffraction reduce the effective per-layer result to ~1.25 dB in a real room

The tongue-in-cheek devkit framing holds up better than expected. The material is genuinely well-characterised, the cutting is precise, and the electromagnetic properties are real.

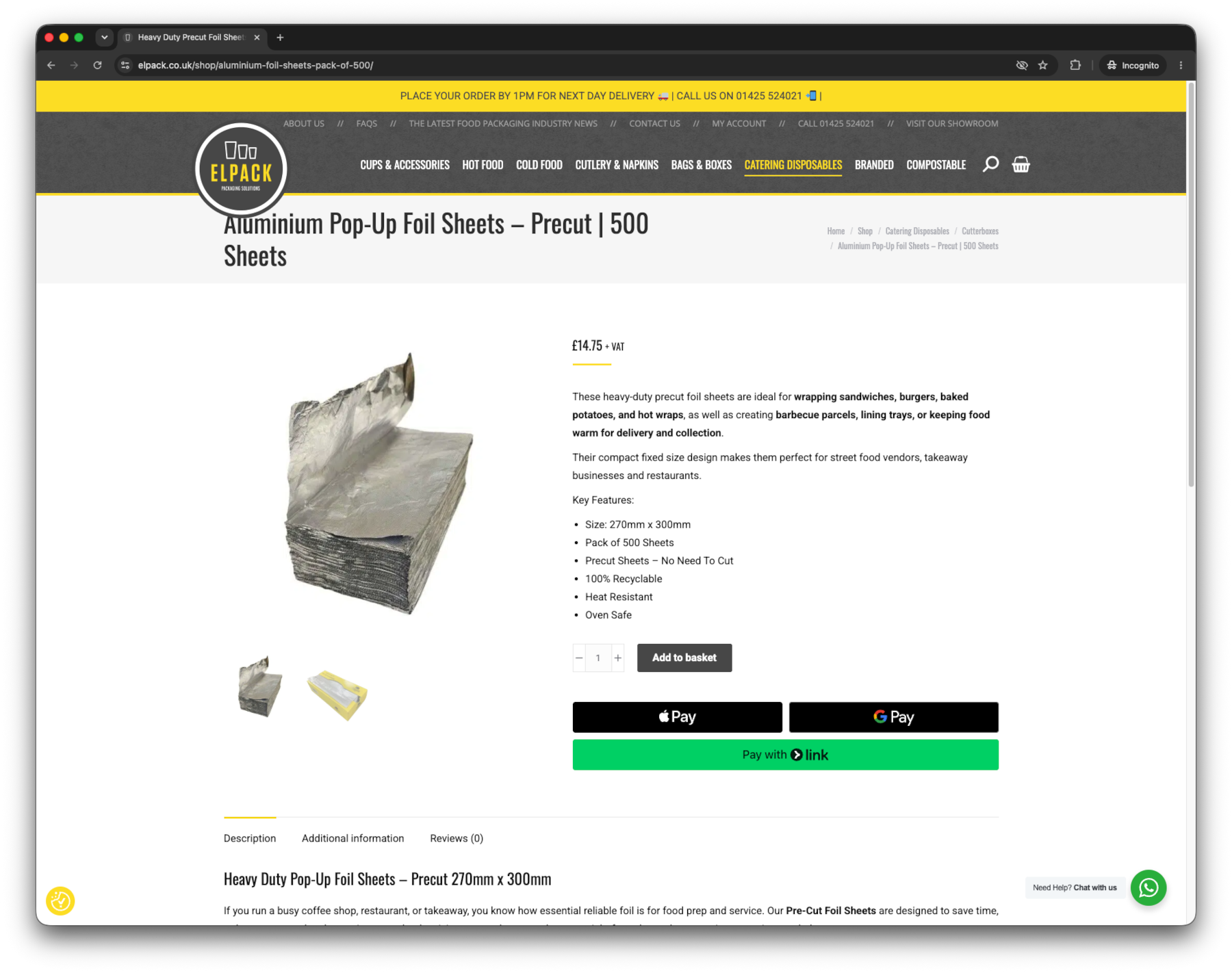

I note that you cannot seem to be able to get the same DevKit on the element14 website anymore, but the same dimentions and texture can be bought from:

Future Work

  • 2.4 GHz (nRF24L01, Zigbee) — shorter wavelength, even thinner skin depth; expect attenuation in fewer layers
  • mmWave radar — at 24/60/77 GHz the skin depth drops to ~0.3–0.5 µm; the 14.32 µm foil is 28–48 skin depths thick and acts as a near-perfect reflector rather than an absorber; interesting to verify with the mmWave sensor whether a single sheet registers as a hard target, and whether crumpling the foil changes the radar cross-section — a flat sheet is a specular reflector (strong return only at normal incidence) while a crumpled sheet scatters in all directions.
  • DIY parallel-plate capacitor — two full sheets + baking paper dielectric → measure capacitance → compute ε₀ → derive the speed of light from
    c = 1/√(ε₀μ₀)

    The April Fools devkit that became a Maxwell electromagnetism experiment.

All data, calculations and plots in the accompanying Jupyter notebook.
